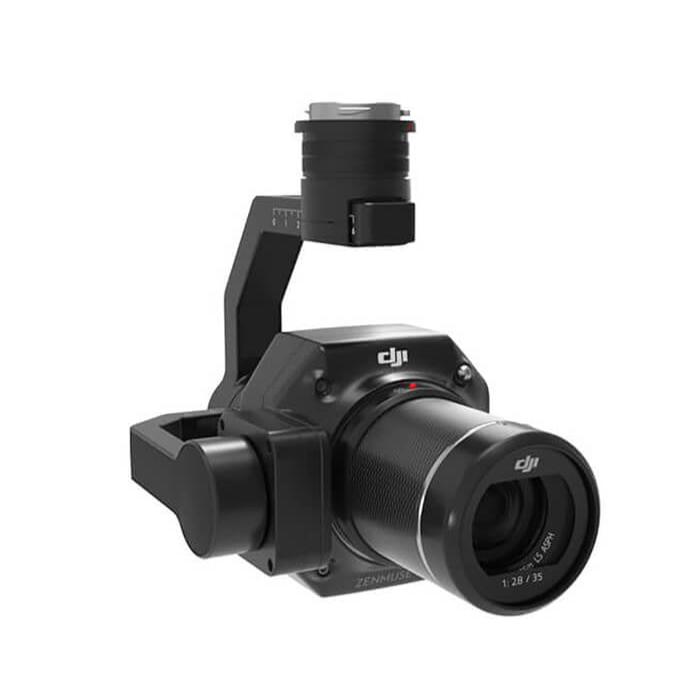

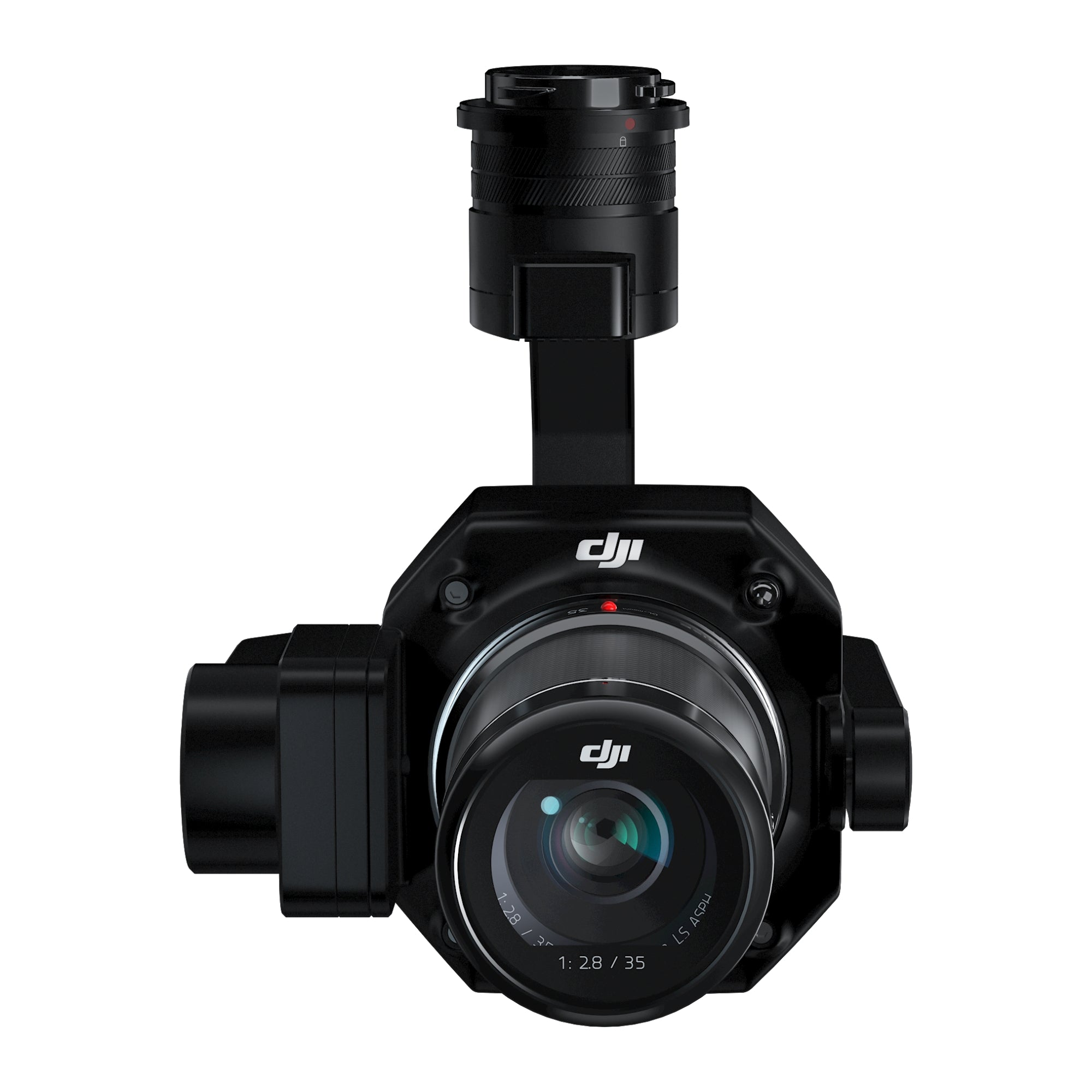

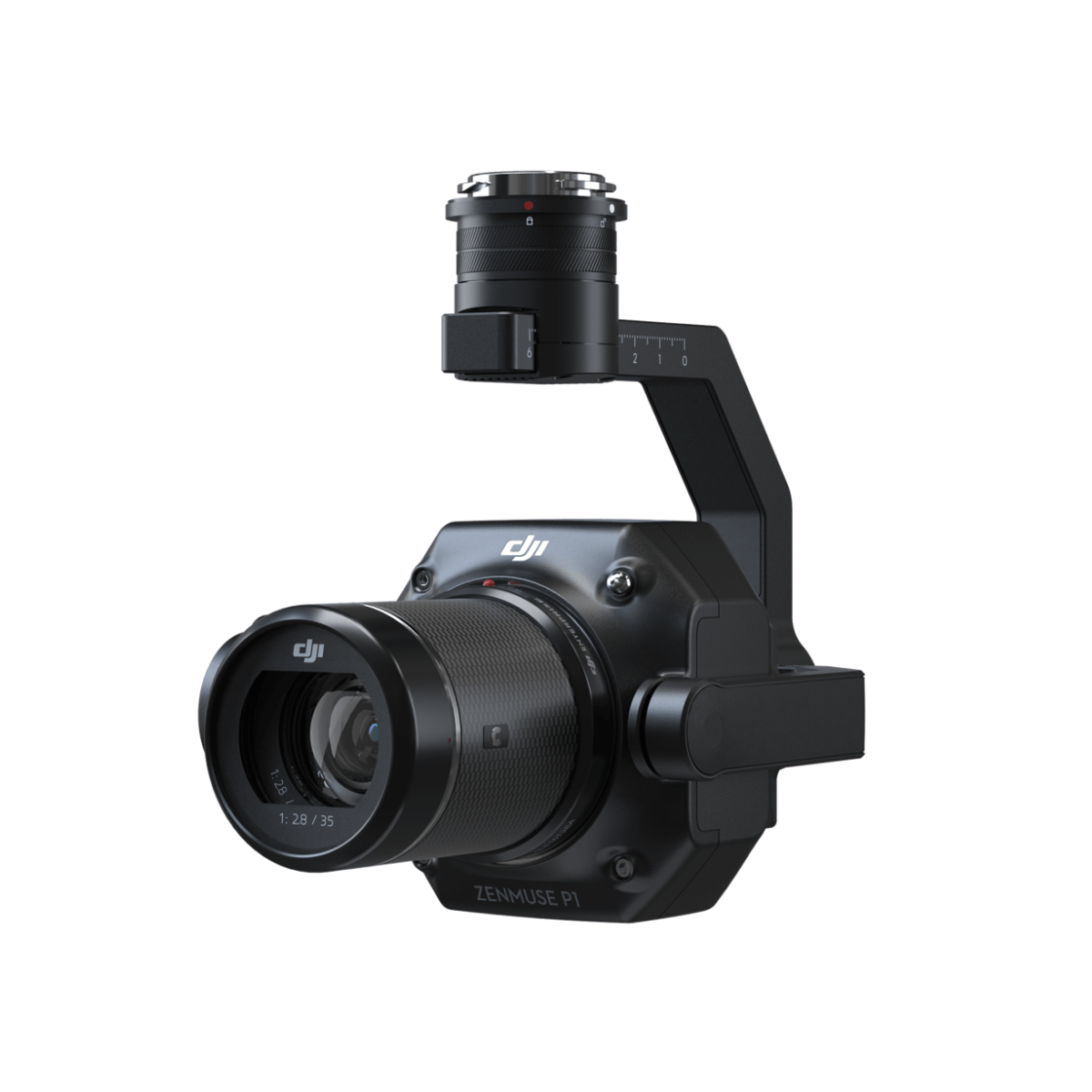

DJI Zenmuse P1 Payload for Photogrammetry and Surveying

The DJI Zenmuse P1 is a 45MP full-frame photogrammetry camera designed for professional mapping, modeling, and surveying. Built for seamless integration with DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK drones, the P1 delivers fast, accurate results with centimeter-level precision.

It supports real-time RTK alignment, smart oblique image capture, and efficient post-processing through DJI Terra.

Key Features of the Zenmuse P1

• Precision Without GCPs: Achieve horizontal accuracy of 3 cm and vertical accuracy of 5 cm for dependable results.
• Enhanced Coverage: Survey up to 3 km² in a single flight, maximizing productivity.
• Unrivaled Imaging Power: Capture stunning detail with a 45MP full-frame sensor.
• Stable Operation: Utilize a 3-axis stabilized gimbal with Smart Oblique Capture for smooth functionality.
• Fast Shutter Response: Global mechanical shutter captures crisp visuals at 1/2000 seconds.
• Perfect Synchronization: TimeSync 2.0 aligns all modules with microsecond precision.


DJI Zenmuse P1 Camera Specs

Feature	Specification
Sensor Type	45MP Full-frame CMOS
Pixel Size	4.4μm
Lens Mount	DJI DL Mount
Supported Lenses	24mm, 35mm, 50mm fixed-focus
Shutter Type	Global mechanical shutter
Max Shutter Speed	1/2000s
Capture Rate	One image every 0.7 seconds
Data Sync	TimeSync 2.0
Compatible Software	DJI Terra
Compatible Drones	M400, M350 RTK, & M300 RTK

The Ultimate Tool for Photogrammetry Experts

Streamlined Efficiency: The Zenmuse P1's full-frame sensor minimizes noise and improves sensitivity, allowing it to capture a photo every 0.7 seconds. Covering up to 3 km² in one mission, it redefines large-scale surveying.

Exceptional Accuracy: With a global mechanical shutter and TimeSync 2.0, the P1 ensures precise data alignment across all modules. Real-time position and orientation compensation delivers centimeter-level accuracy.

Unmatched Versatility: Outfit the 3-axis stabilized gimbal with 24/35/50mm lenses to create 2D maps, 3D models, and detailed reconstructions. Smart Oblique Capture optimizes workflows by automating essential image angles.

Performance That Covers It All - Full-Frame Camera

• High-Resolution Sensor: The 45MP full-frame sensor with 4.4µm pixel size ensures superior image clarity.
• Extended Operation: Low-noise imaging extends flight duration, capturing data for longer periods.
• Rapid Imaging: Capture photos every 0.7 seconds for high-speed data acquisition.
• Precision Alignment: TimeSync 2.0 ensures flawless synchronization of the camera, RTK module, flight controller, and gimbal.

Adaptability at Its Finest - Fixed-Focus Lens Options

• Global Mechanical Shutter: Achieve distortion-free images with a shutter speed of 1/2000 seconds.
• Versatile Lens Compatibility: Use 24mm, 35mm, and 50mm lenses with DJI DL mounts to tailor your setup.
• Microsecond Timing: Median exposure pulse ensures precise data capture.

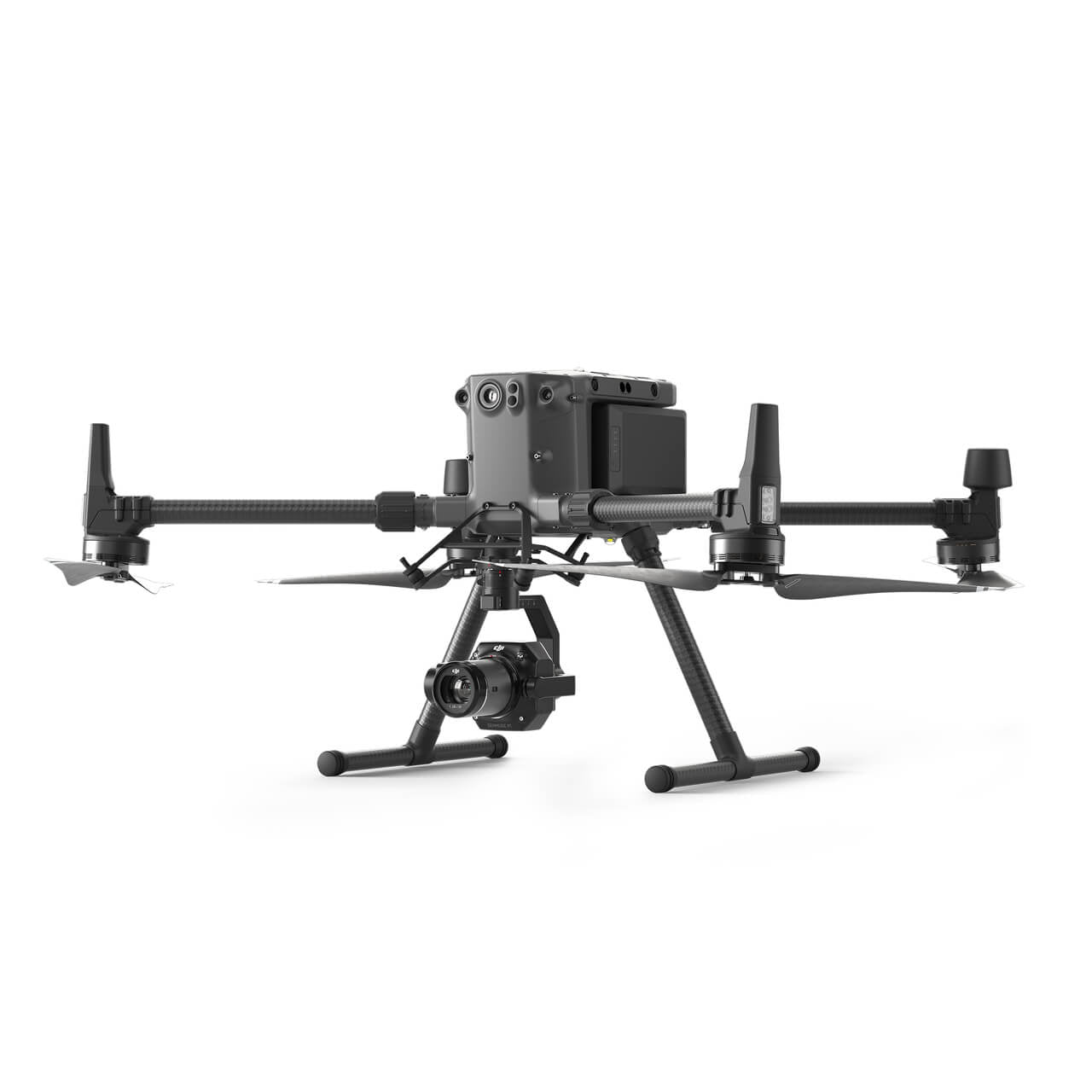

Compatible Drones and Enterprise Use

The Zenmuse P1 is fully compatible with:

1. DJI Matrice 300 RTK

2. DJI Matrice 350 RTK
3. DJI Matrice 400

All these drone systems use DJI Pilot 2 and DJI Terra for full integration.

Need to complete your payload setup? Browse our DJI Matrice drones and Zenmuse payloads.

Smart Oblique Capture and Efficiency Features

The P1’s Smart Oblique Capture rotates the camera during flight to collect only the images needed for reconstruction.

• Covers up to 7.5 km² per day
• Reduces post-processing by 20–50%
• Saves onboard storage and sorting time

The P1 also:

• Tags every image with RTK and orientation metadata
• Associates output with mission names and timestamps
• Stores metadata MRK files with geolocation and camera details

This feature is built for urban planning, cadastral mapping, and detailed 3D reconstruction.

Mission Modes and Applications

Use the DJI Zenmuse P1 for a range of photogrammetry tasks:

2D Orthomosaic Mapping

• Capture flat, high-resolution maps without GCPs.
• Ideal for medium to large land surveys.

3D Oblique Modeling

• Automated angled image capture.
• Best for urban planning and smart city modeling.

High-resolution Reality Modeling

• Scan vertical surfaces and complex structures.
• Useful for geology, historical preservation, and engineering.

Real-time Mapping

• Use DJI Terra on-site to check results.
• Enables faster decision-making in the field.

Field Verification Tools

Avoid re-flights with built-in verification options:

• RTK Accuracy Check
  Confirm GNSS lock and satellite data.
• Image Positioning Data
  Review captured angles, geotags, and coverage.
• Instant Playback
  Spot-check coverage and positioning before leaving the site.

Use Cases for the Zenmuse P1

Surveying and Mapping

• Produce orthomosaics and elevation models without ground control points
• Cover large areas with fewer flights

Construction and Infrastructure

• Verify grade and volume
• Capture bridge, road, or structure images

Urban and Land Planning

• Model dense environments for smart cities
• Document boundary and parcel data

Utilities and Energy

• Capture top-down and oblique imagery of powerlines and substations

Environmental and Geological Work

• Map erosion, elevation, and ecological zones
• Document terrain for conservation or hazard mitigation

Cultural Preservation

• Build 3D reconstructions of historical and geological sites

Need help integrating the DJI Zenmuse P1 into your operations? Explore the full Zenmuse payload collection, DJI Matrice drones, and drone accessories to build your complete aerial platform.

Talk to an expert to get started.
